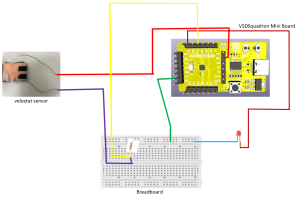

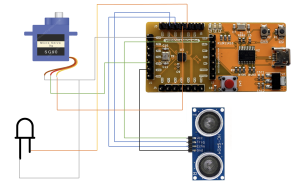

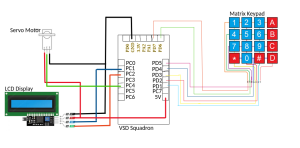

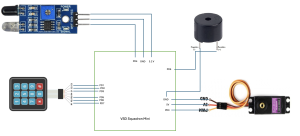

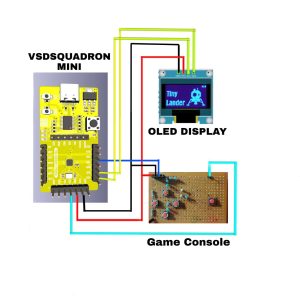

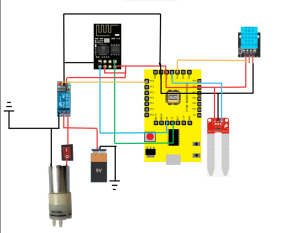

VSDSquadron Mini

RISC-V Development Kit

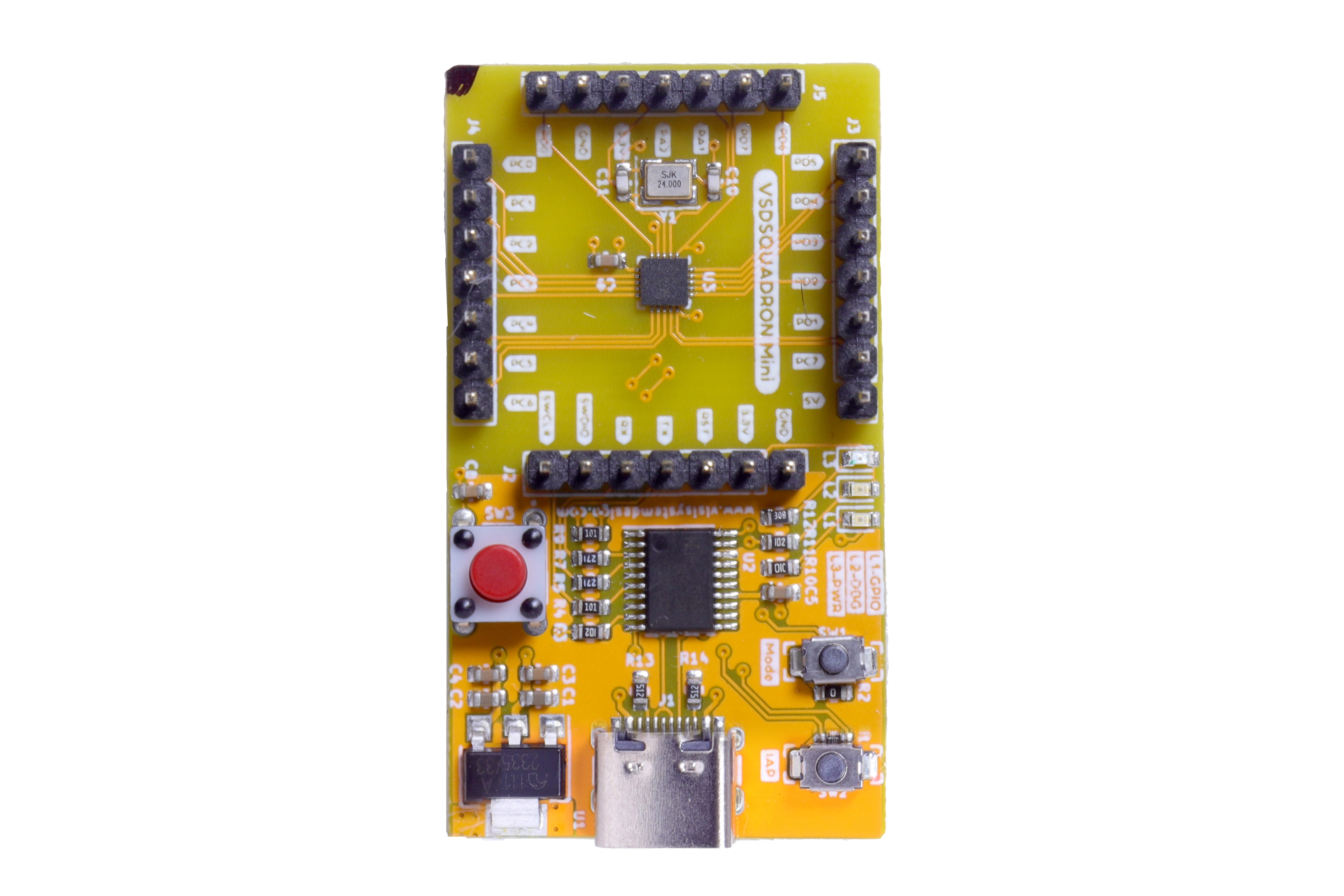

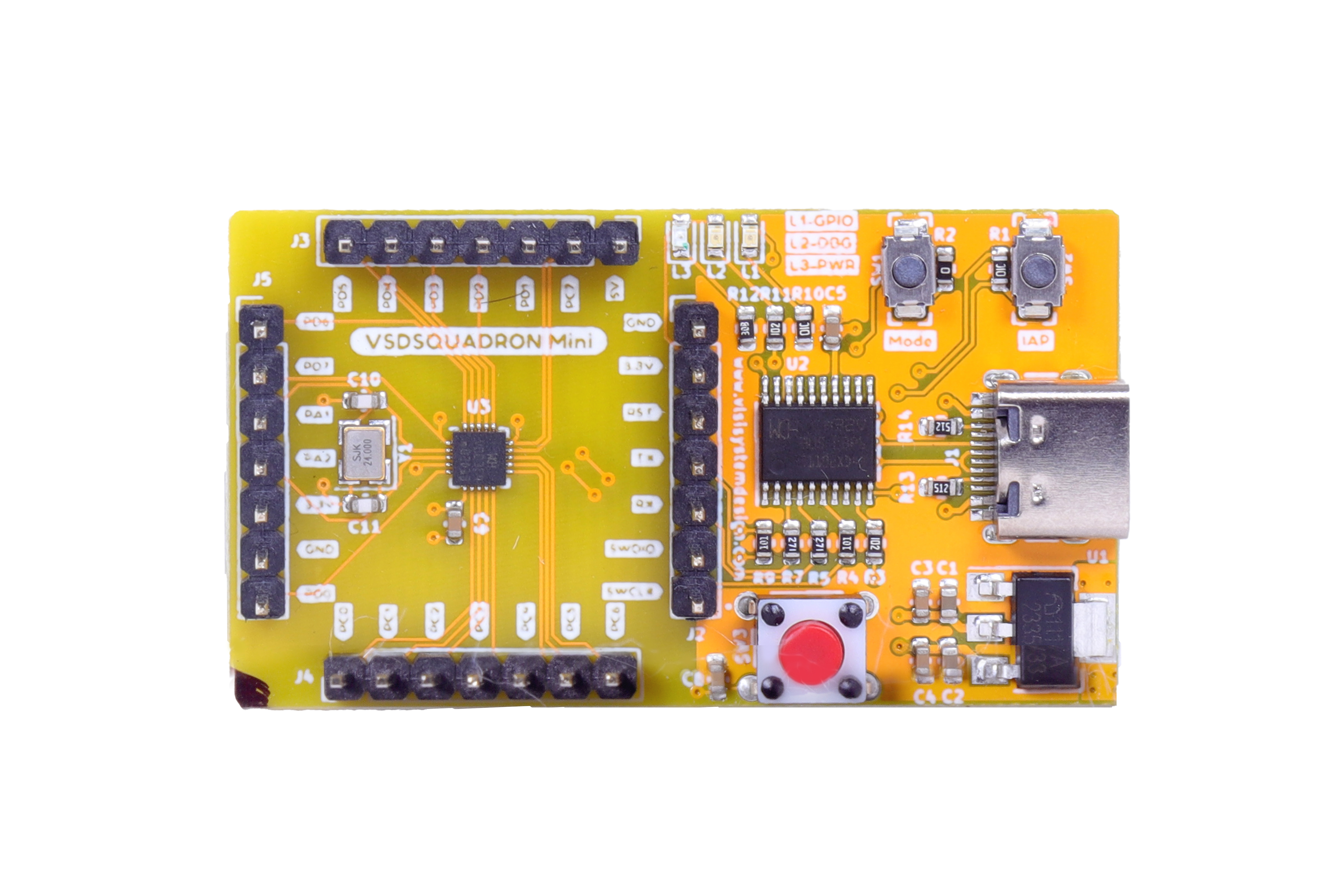

Welcome to the latest addition to our innovative line up, the VSDSquadron Mini. This compact board harnesses the robust capabilities of the acclaimed RISC-V architecture, fully equipped to integrate into your development ecosystem.

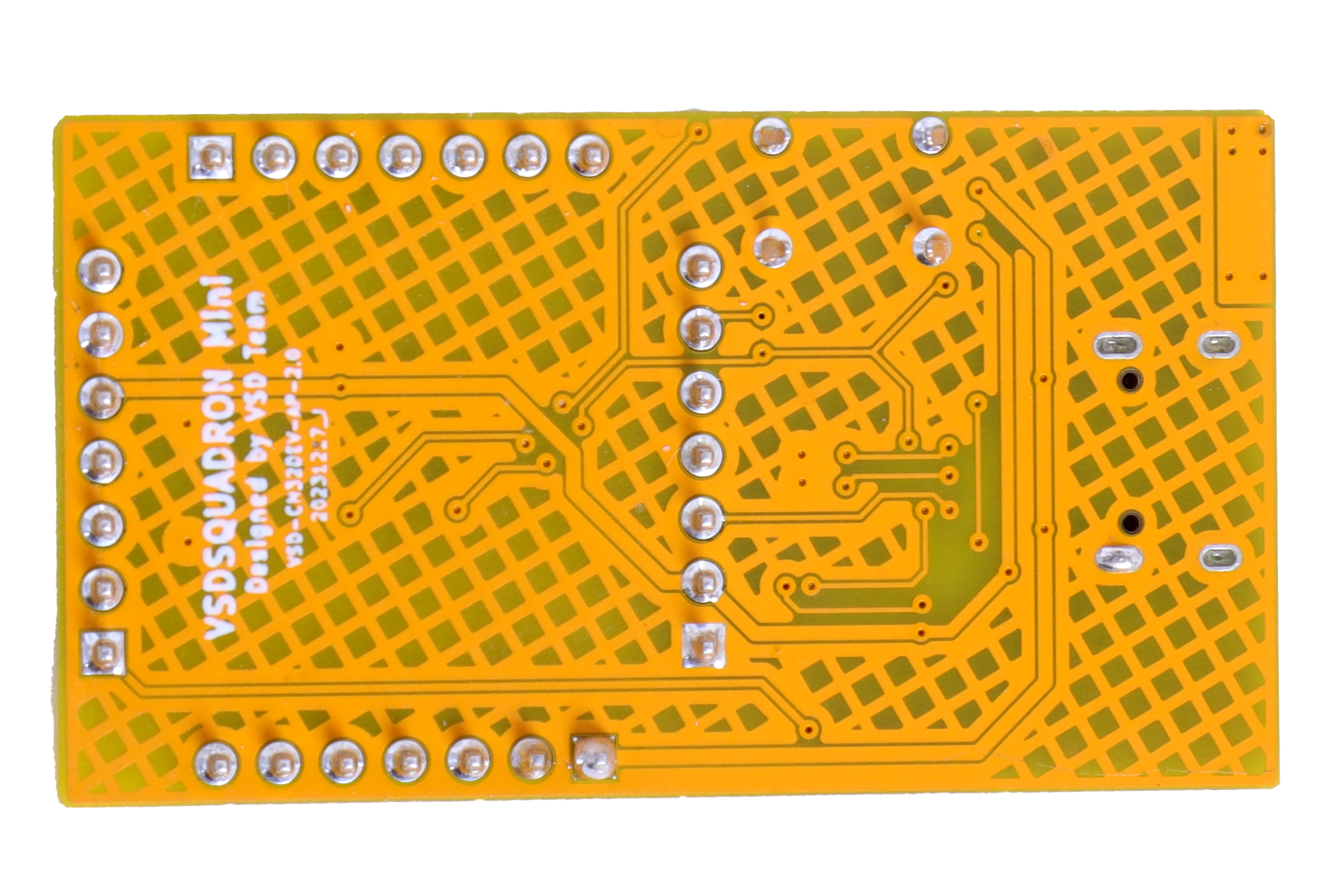

VSDSquadron Mini

RISC-V Development Kit

Welcome to the latest addition to our innovative line up, the VSDSquadron Mini. This compact board harnesses the robust capabilities of the acclaimed RISC-V architecture, fully equipped to integrate into your development ecosystem.

Overview

Introducing the VSDSquadron Mini, a versatile powerhouse within the RISC-V landscape that elevates your development to new heights. Whether you’re a newcomer delving into the realm of embedded systems or an experienced developer crafting intricate device, the VSDSquadron Mini is your ideal companion. It seamlessly bridges the gap between theory and practical application, offering an on-board flash programmer with single-wire programming protocol to jumpstart your projects in education and development with proficiency and ease.

Key Features

Core Processor

The board is powered by CH32V003F4U6 chip with 32-bit RISC-V core based on RV32EC instruction set, optimized for high-performance computing with support for 2-level interrupt nesting and supports 24MHz system main frequency in the product function.

Clock and Reset Systems

Includes a built-in factory-trimmed 24MHz RC oscillator and a 128kHz RC oscillator, plus an external 24MHz oscillator option for varied clocking requirements.

Robust GPIO Support

Boasts 3 groups of GPIO ports, totalling 15 I/O ports, enabling extensive peripheral connections and mapping to external interrupt capabilities.

Flexible Communication Interfaces

Offers multiple communication protocols including US- ART, I2C, and SPI for versatile connectivity options.

High-Speed Memory

Equipped with 2KB SRAM for volatile data storage, 16KB CodeFlash for program memory, and additional 1920B for bootloader functionalities.

On-board Programmer

Features on-board CH32V305FBP6 single-wire programming protocol, enhancing development efficiency with seamless code deployment and debugging. NO NEED to purchase any additional adapter,

Tech Specs

Name

VSDSquadron Mini

Board

SKU

VSDSQM

Microcontroller

CH32V003F4U6 chip with 32-bit RISC-V core based on RV32EC instruction set

USB connector

USB 2.0 Type-C

Pins

Built-in LED Pin

1X onboard user led (PD6)

Digital I/O pins

15

Analog I/O pins

10-bit ADC, PD0-PD7, PA1, PA2, PC4

PWM pins

14X

External interrupts

8 external interrupt edge detectors, but it only maps one external interrupt to 18 I/O ports

Communication

USART

1x, PD6(RX), PD5(TX)

I2C

1x, PC1(SDA), PC2(SCL)

SPI

1x, PC5(SCK), PC1(NSS), PC6(MOSI), PC7(MISO)

Programmer/debugger

Onboard RISC-V programmer/debugger, USB to TTL serial port support

Power

I/O voltage

3.3 V

Input voltage (nominal)

5 V

Source Current per I/O Pin

8 mA

Sink Current per I/O Pin

8 mA

Clock speed

Processor

24 MHz

 Memory

SRAM

2kb onchip volatile sram,
16kb external program memory

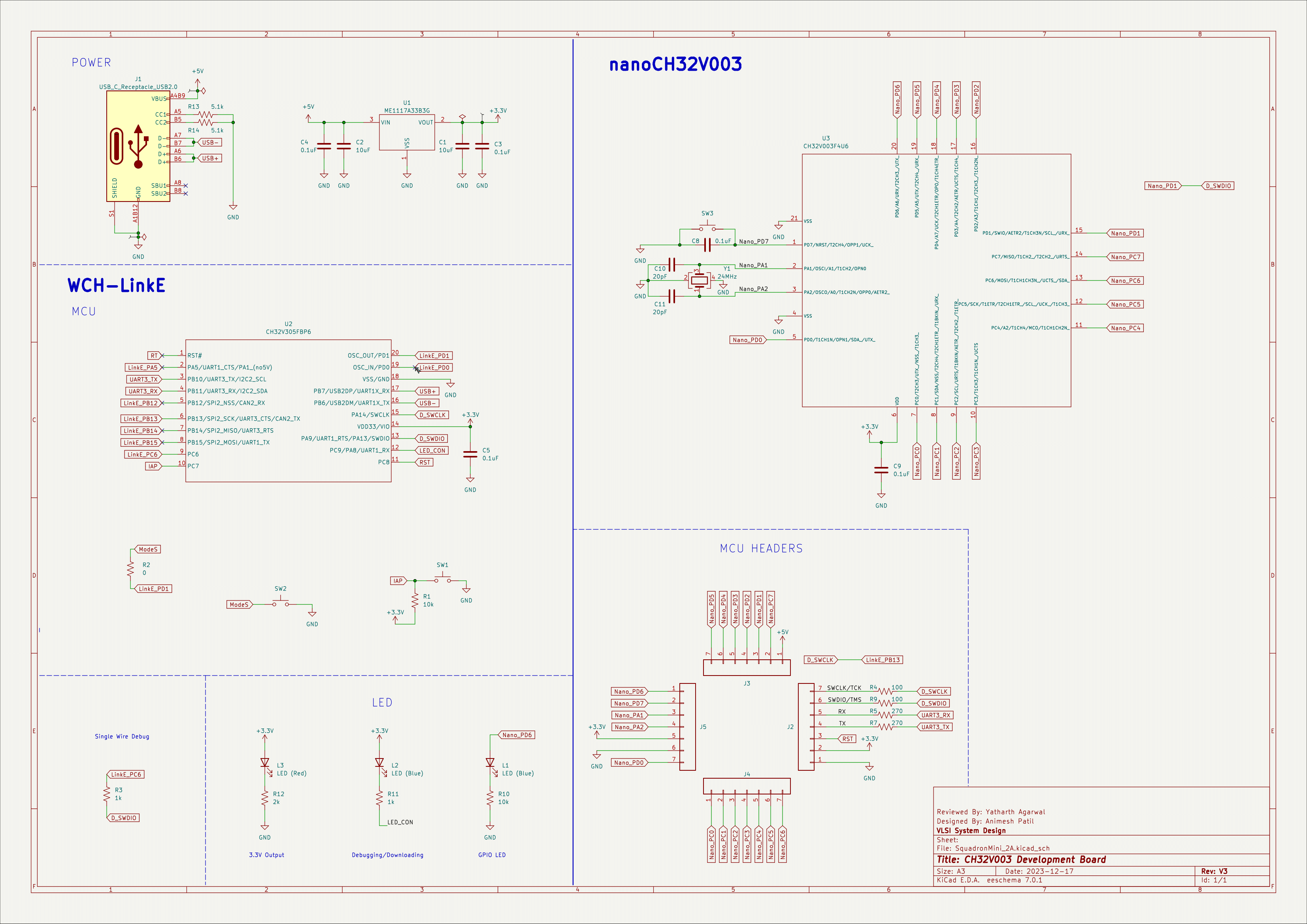

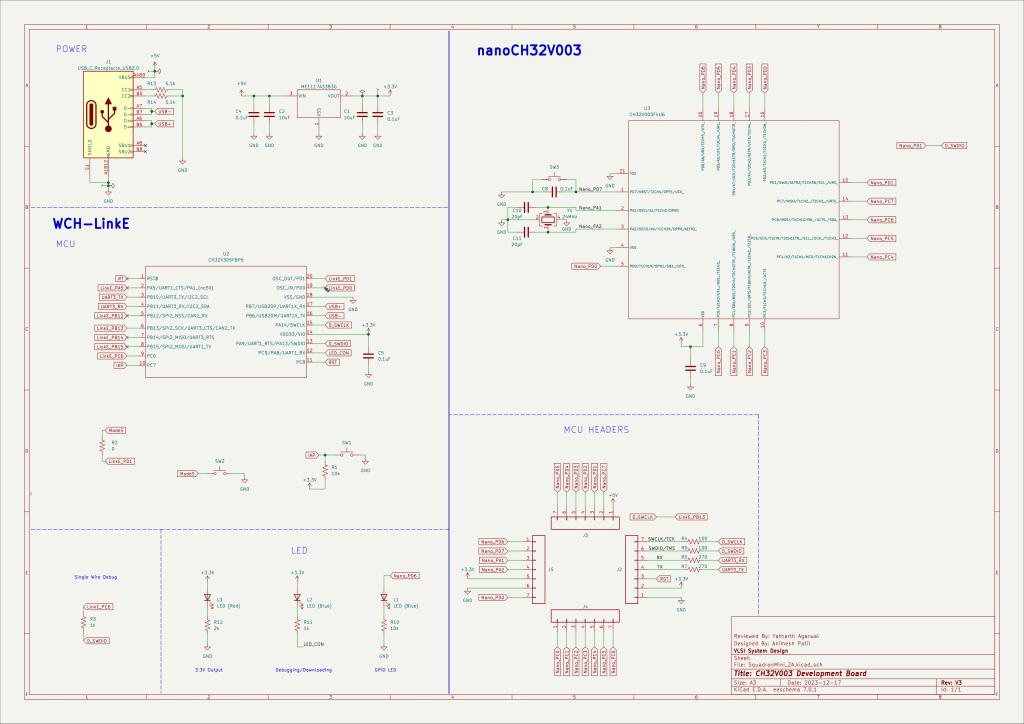

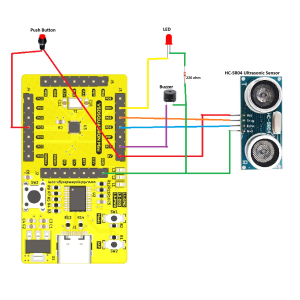

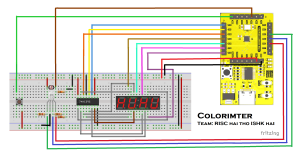

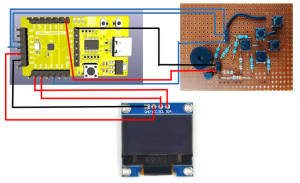

Schematics
