VSD WCH – VLSI System Design

RISC-V Workshop
with VSDSquadron Mini

RISC-V offers a big chance for new ideas and progress in technology all around the world. Companies look at RISC-V to get better at creating their own technology, become more independent, and deal with the growing political challenges. The fact that companies worldwide are getting involved with RISC-V shows they’re planning and aiming to change the computer chip industry, challenging the usual way things are done.

Learning RISC-V is important because it gives individuals the tools to be part of the future of technology. And this workshop will be first step towards it. This workshop will help to learn and apply the RISC-V concepts using RISC-V based Chip (Ch32V003) and development board (VSDSquadron Mini).

History of RISC-V

Workshop Project Theme

Timeline

Registration

14 April – 30 April 2024

Individual who likes to develop products using RISC-V Technology, thereby serving 7 Billion population of world. Register using this link, craft a simple/economical solution around the problem statements and VSD/WCH will guide through the next steps.

Idea Submission

1 – 7 May 2024

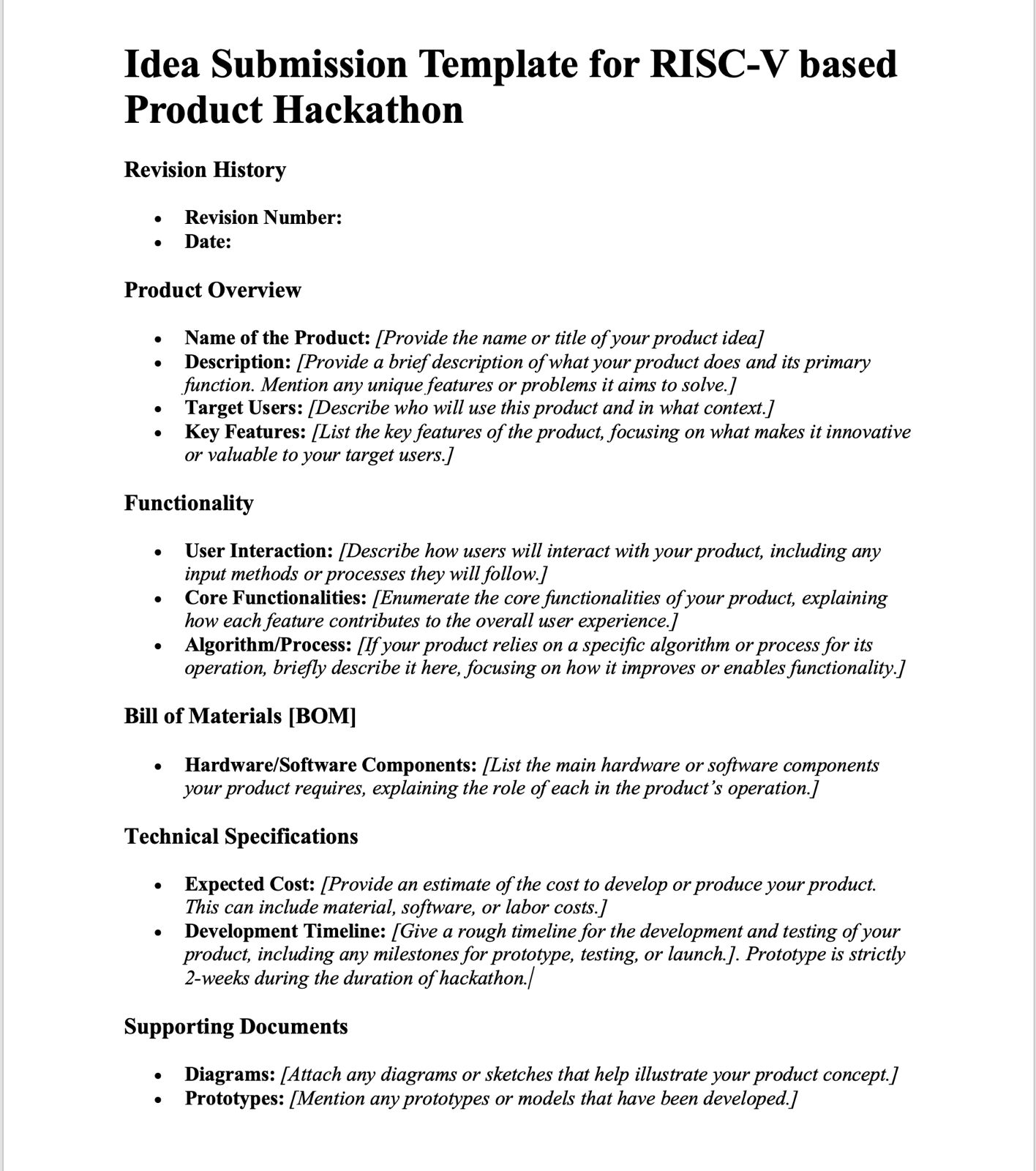

VSD will provide Word document template and participant need to describe groundbreaking solution.

Identify problem statement in consumer electronics, smart meter, and Toy drones. The problem can be related to cost, design, process, or user experience.
Provide a probable solution to one of the above problems.

Organisers will evaluate your ideas

7 – 10 May 2024

Our team of RISC-V experts would look at ideas, and select top 500 ideas who can go to next level.

Announce top 500 members who are eligible to purchase the boards

Buy the boards between 11 – 15 May 2024

(Boards will be shipped by 30 May)

Time to purchase VSDSquadron mini boards online. Once participant make the payment, boards will be shipped to in 7-8 working days. Shipping fees is sponsored by <xyz> sponsor. Participants take care of Custom Taxes.

Finalize BOM and Code using VSDSquadron Mini Board

31 May – 20 June 2024

Finalize BoM and code to make sure that the raw embedded code is seamlessly working with VSDSquadron Mini board. A loose wiring with a breadboard is also fine. Infact, that’s a great start.

Integration and video product demonstration

21 – 30 June 2024

A video of Working Prototype (BoM + Board)

Our organizer will evaluate and announce top 10 winners who will receive complete refund of board cost.

Winner will be announced

10 July 2024

Repay the Board Cost

17 July 2024

Resources

VSDSquadron Mini Tech Specs Table

	Name	VSDSquadron Mini
Board	SKU	VSDSQM
Microcontroller	CH32V003F4U6 chip with 32-bit RISC-V core based on RV32EC instruction set
USB connector	USB 2.0 Type-C
Pins	Built-in LED Pin	1X onboard user led (PD6)
	Digital I/O pins	15
	Analog I/O pins	10-bit ADC, PD0-PD7, PA1, PA2, PC4
	PWM pins	14X
	External interrupts	8 external interrupt edge detectors, but it only maps one external interrupt to 18 I/O ports
Communication	USART	1x, PD6(RX), PD5(TX)
	I2C	1x, PC1(SDA), PC2(SCL)
	SPI	1x, PC5(SCK), PC1(NSS), PC6(MOSI), PC7(MISO)
	Programmer/debugger	Onboard RISC-V programmer/debugger, USB to TTL serial port support
Power	I/O voltage	3.3 V
	Input voltage (nominal)	5 V
	Source Current per I/O Pin	8 mA
	Sink Current per I/O Pin	8 mA
Clock speed	Processor	24 MHz
Memory	SRAM	2kb onchip volatile sram, 16kb external program memory

Expected Outcome

Final Submission should be RISC-V product ready for market deployment.
